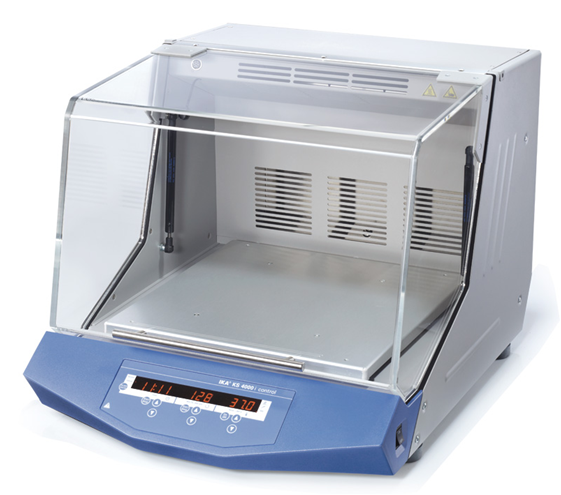

KS4000 ic control

Innovative incubator shaker design allowing unattended operation in a temperature-controlled environment.

• Large LED display for speed and time settings
• Controls with antimicrobial coating for reduction of bacteria
• Integrated PID temperature control (use of two PT 1000 temperature sensors)
• Junction box in the workspace for connection of an additional temperature sensor e.g. PT 1000.60
• Electronic temperature and speed control
• Electronic timer switch: 0 – 999 h (set by the minute or by the hour)
• Optional built-in cooler for connection to an external cooling unit e.g. KV 600
• Unit switches off automatically if disturbed
• Unit stops automatically when hood is lifted
• Collecting tray with drain hose on rear of unit
• Simple operation
• All functions can be controlled and documented with labworldsoft®
• Attachements are not included in delivery, please order seperatly

Technical Data:

Type of movementorbital

Shaker diameter20 mm

Permissible shaking weight (incl. attachment)20 kg

Motor rating input82 W

Motor rating output24 W

Permissible ON time100 %

Speed min (adjustable)10 rpm

Speed range10 - 500 rpm

Speed displayLED

Timeryes

Timer display7 segment LED

Time setting range1 - 59940 min

Operating modetimer and continuous operation

Touch functionno

Shaking table lockno

Working with microtiter platesno

Heat output1000 W

Temperature displayyes

Temp. stability (0,2l H2O; RT 25°C, T=37°C)0.1 ±K

Temperature range (inlet T>3°C)room temp. - 10° - 80° °C

Total volume inner chamber90 l

Height with open hood875 mm

Dimensions (W x H x D)580 x 525 x 750 mm

Weight55 kg

Permissible ambient temperature15 - 32 °C

Permissible relative humidity80 %

Protection class according to DIN EN 60529IP 30

RS 232 interfaceyes

Voltage230 / 115 / 100 V

Frequency50/60 Hz

Power input1120 W
